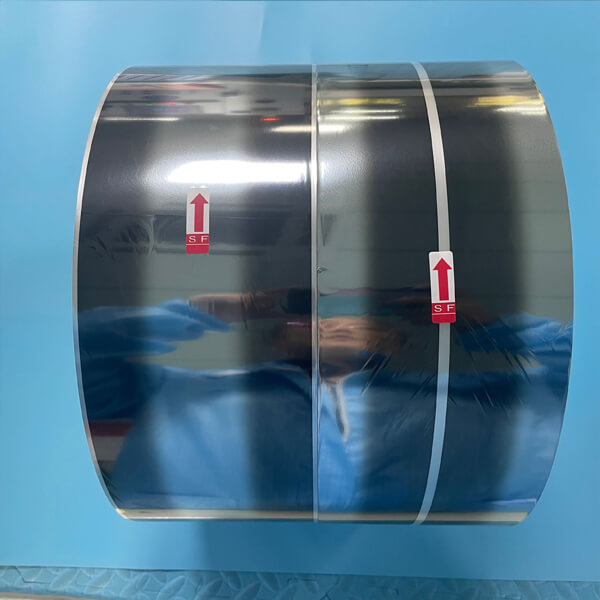

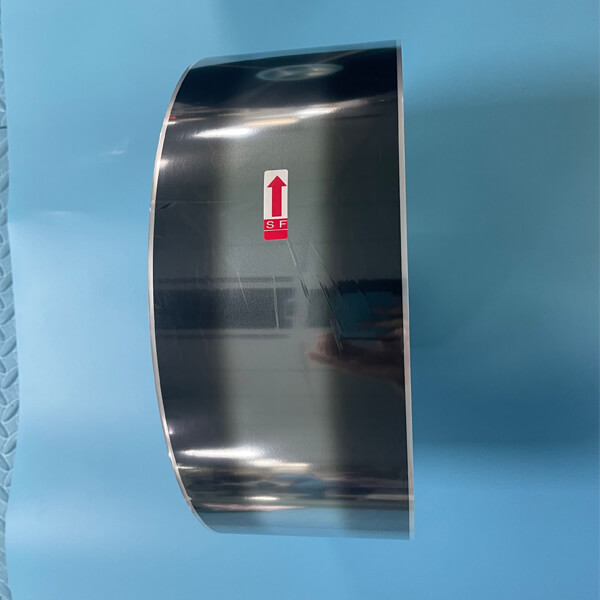

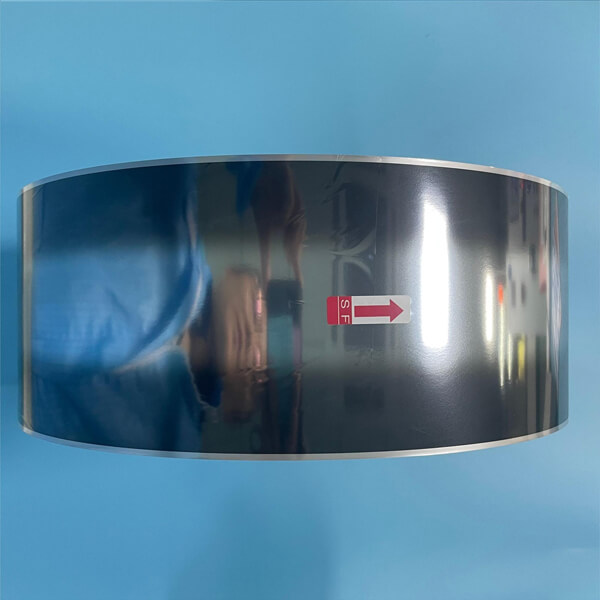

Al MPP Film Both Side Margin

MPP film is a type of plastic film that is used for various applications including packaging, printing, and laminating. It is a multi-purpose film that is made from polypropylene, which is a strong and flexible material.

The margin on both sides of an MPP film refers to the space or distance between the edge of the film and the printed or laminated material. This margin is usually added to allow for proper handling, cutting, and sealing of the film during the manufacturing process. It also helps to prevent any damage to the printed or laminated material during transport or storage.

The size of the margin on both sides of an MPP film can vary depending on the specific application and the requirements of the end-use product. It is important to consider the margin size when selecting an MPP film for a particular project to ensure that it meets all the necessary specifications.


Specification of Al MPP Film Both Side Margin


Base film

Polypropylene film

Normal thickness

2.0μm ~12.0μm

Margin type

Double

Coating metal

Aluminum

Coating side

Single

Edge structure

No Heavy edge


Square resistance: Normal film Width and Margin

Width(mm)

Margin(mm)

Width(mm)

Margin(mm)

14

1.5

42

1.5/2.0

18

1.5

50

2.5

20

1.0/1.5

52

1.5/2.0

38

1.5

60

2.0/2.5


Square resistance

Tolerance

1.5Ω/□

±30%

2.0Ω/□

±30%

2.5Ω/□

±30%

3.0Ω/□

±30%

3.5Ω/□

±30%

Note: If a customer needs other resistance, film width, or margin, please contact us.


Inside/outside core diameter:

Inside core diameter/Tolerance

Outside core diameter/Tolerance

75mm

+1/-0.5mm

175

220

±25mm

±20mm

Note: A pair tolerance of outside core diameter ≤2mm.


Specifications of metalized polypropylene film:

Properties

Unit

Typical value

Density

g/cm3

0.905±0.005

Thickness

µm

2.0 ~ 12

Tensile Strength

MD (MPa)

≥100

Elongation at Break

MD (%)

20~200

Elastic Modulus

MD (MPa)

2800

Heat Shrinkage

MD (%)

≤5 ( 120°C, 10min)

Wetting Tension

mN/m

38 (Corona treated side)

Surface Roughness

µm

0.08

Melting Point

172

Volume Resistivity

Ω.m

>1015

Break-down Voltage

V/µm

≥350 ( 23°C, DC )

Dielectric Constant


2.2 (20℃,1KHz)

Dissipation Factor


≤4×10-4 (20℃,1KHz )

RC

ΩF

≥5×104
