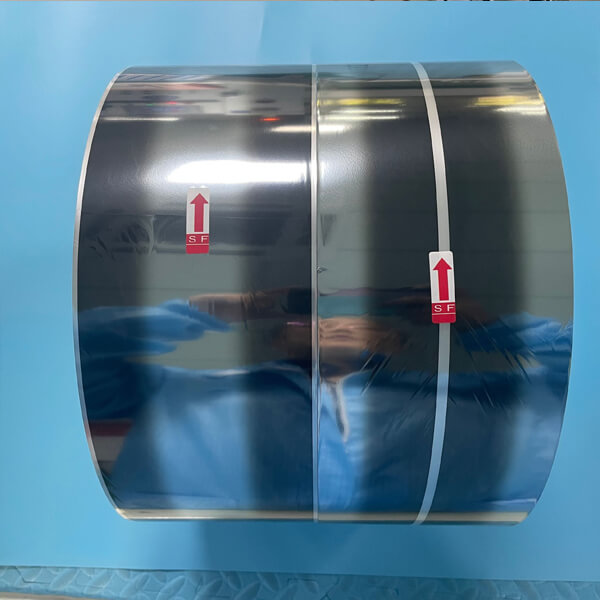

Al MPP Film With Center Margin

An MPP film with a center margin refers to a film that has a margin or space between the printed or laminated material and the edge of the film in the center of the film. This margin is usually added to allow for proper handling, cutting, and sealing of the film during the manufacturing process. It can also help to prevent any damage to the printed or laminated material during transport or storage.

The size of the center margin on an MPP film can vary depending on the specific application and the requirements of the end-use product. It is important to consider the margin size when selecting an MPP film for a particular project to ensure that it meets all the necessary specifications.

In addition to the center margin, MPP films can also have margins on both sides or only on one side. The type of margin needed will depend on the specific requirements of the project and the desired end result.


Specification of Al MPP Film With Center Margin


Base film

Polypropylene film

Normal thickness

2.0μm ~12.0μm

Margin type

middle

Coating metal

Aluminum

Coating side

Single or double

Edge structure

No Heavy edge


Square resistance: Normal film Width and Margin

Width(mm)

Margin(mm)

Width(mm)

Margin(mm)

14

1.5

42

1.5/2.0

18

1.5

50

2.5

20

1.0/1.5

52

1.5/2.0

38

1.5

60

2.0/2.5


Square resistance

Tolerance

1.5Ω/□

±30%

2.0Ω/□

±30%

2.5Ω/□

±30%

3.0Ω/□

±30%

3.5Ω/□

±30%

Note: If customer needs other resistance, film width or margin, please contact us.


Inside/outside core diameter:

Inside core diameter/Tolerance

Outside core diameter/Tolerance

75mm

+1/-0.5mm

175

220

±25mm

±20mm

Note: A pair tolerance of outside core diameter ≤2mm.


Specifications of metallized polypropylene film:

Properties

Unit

Typical value

Density

g/cm3

0.905±0.005

Thickness

µm

2.0 ~ 12

Tensile Strength

MD (MPa)

≥100

Elongation at Break

MD (%)

20~200

Elastic Modulus

MD (MPa)

2800

Heat Shrinkage

MD (%)

≤5 ( 120°C, 10min)

Wetting Tension

mN/m

38 (Corona treated side)

Surface Roughness

µm

0.08

Melting Point

172

Volume Resistivity

Ω.m

>1015

Break-dowm Voltage

V/µm

≥350 ( 23°C, DC )

Dielectric Constant


2.2 (20℃,1KHz)

Dissipation Factor


≤4×10-4 (20℃,1KHz )

RC

ΩF

≥5×104
