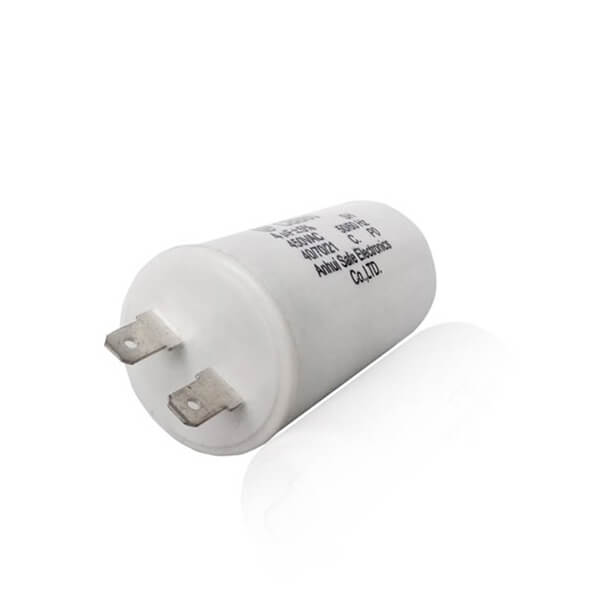

CBB60 Motor Run Capacitor with 2 Pins

CBB60 motor run capacitors utilize low-loss metalized polypropylene film for dielectric. The CBB60 motor run capacitors are encapsulated with resin and housed in a self-extinguishing plastic case which allows for superior reliability and a high mechanical shock and vibration strength. The CBB60 series of motor run capacitors is ideal for start and run applications in single-phase asynchronous motors and general A.C. applications at industrial frequencies. The motor run capacitor is small in bulk, has long life-span and good self-healing characteristic.

We adhere to the business model of independent production and fast delivery to reduce your procurement costs and save your procurement time.

Specification of CBB60 Motor Run Capacitor with 2 Pins


Reference standards

GB/T 3667.1( IEC60252-1)

Climatic category

40 / 70 / 21, 40 / 85 / 21

Class of operation

Class B (10000h) Class C (3000h)

Class of safety protection

S0 /S3

Voltage range

250VAC, 370VAC, 440VAC, 450VAC

Capacitance range

1~60μF

Capacitance tolerance

± 5%, ± 10%, ± 15%

Dissipation factor

20 x10-4 (100Hz, 20°C)

Test voltage terminal to terminal UTT

2Un for 2 seconds

Test voltage terminal to case UTC

(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds

Insulation resistance

≥3000s (100Hz, 20°C, 1min)


Dimensions (mm):


Specifications

Routine

With screws or pins

450VAC

250VAC

450VAC

250VAC

1μF

φ26*52

φ26*52

φ30*52

φ30*52

2μF

φ26*52

φ26*52

φ30*52

φ30*52

2.5μF

φ26*52

φ26*52

φ30*52

φ30*52

3μF

φ26*52

φ26*52

φ30*52

φ30*52

3.5μF

φ26*52

φ26*52

φ30*59

φ30*52

4μF

φ28.5*55

φ26*52

φ35*62

φ30*52

4.5μF

φ28.5*55

φ26*52

φ35*62

φ30*52

5μF

φ28.5*55

φ26*52

φ35*62

φ30*52

5.5μF

φ34*62

φ26*52

φ35*62

φ30*52

6μF

φ34*62

φ26*52

φ35*62

φ30*52

6.5μF

φ34*62

φ26*52

φ35*62

φ30*52

7μF

φ34*62

φ26*52

φ35*62

φ30*52

8μF

φ34*62

φ26*52

φ35*62

φ30*52

9μF

φ34*62

φ26*52

φ35*62

φ30*52

10μF

φ34*62

φ26*52

φ35*72

φ30*52

12μF

φ37*73

φ26*52

φ35*72

φ30*61

14μF

φ37*73

φ34*62

φ40*72

φ30*61

15μF

φ37*73

φ34*62

φ40*72

φ30*61

16μF

φ37*73

φ34*62

φ40*72

φ30*61

18μF

φ37*73

φ34*62

φ40*72

φ35*67

20μF

φ40*72

φ34*62

φ40*72

φ35*67

25μF

φ42*80

φ42*62

φ40*72

φ35*67

30μF

φ42*90

φ40*72

φ45*95

φ40*72

35μF

φ45*90

φ40*72

φ45*95

φ40*72

40μF

φ50*100

φ42*90

φ50*110

φ40*97

45μF

φ50*100

φ42*90

φ50*110

φ40*97

50μF

φ50*100

φ42*90

φ50*120

φ40*97

60μF

φ50*115

φ42*90

φ50*120

φ40*97


Note: Other specifications and sizes of the terminal outside the table are negotiable.



Applications of CBB60 Motor Run Capacitor with 2 Pins

The motor run capacitor is widely used as the start-up and running capacitor that is special for micro water pumps, cleaning machines, washing machines, and single-phase water pump motors.

Features of CBB60 Motor Run Capacitor with 2 Pins

  • Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.

  • Self-healing property.

  • Good stability and reliability.
