Energy Storage, Pulsed, DC-Link Filter Capacitor

Energy Storage, Pulsed, DC-Link Filter Capacitor's Application:

1. Used in rail transit traction or ship drive converter.

2. Used in various high-power industrial inverters. Such as a high-voltage variable frequency drive device.

3. Used in power harmonic governance and SVG equipment.

Specification of Energy Storage, Pulsed, DC-Link Filter Capacitor

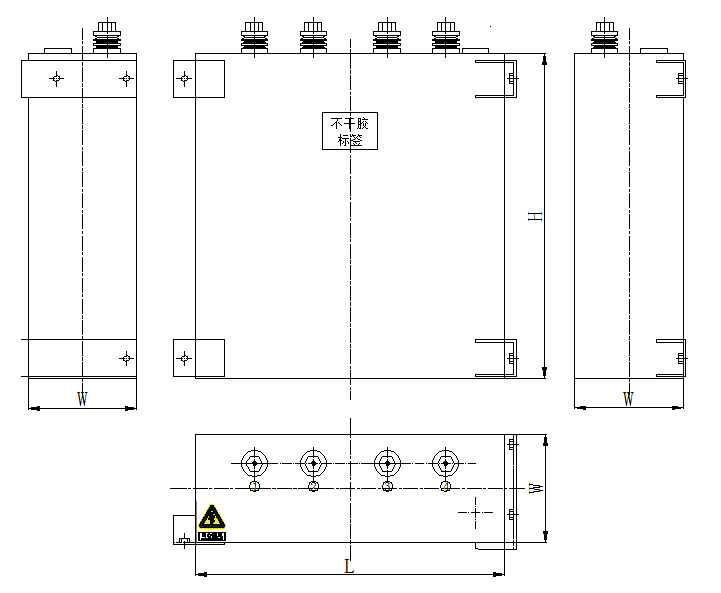

Energy Storage Pulsed Dc Link Filter Capacitor Outline Drawing

Energy Storage Pulsed Dc Link Filter Capacitor Outline Drawing

Item	Voltage VDC	Capacitance uF	Size	current
1	1000	500	180100160	50
2	1000	1000	230100210	95
3	1000	1500	250120220	108
4	1000	2000	250120270	144
5	1000	2200	280120260	159
6	1000	2400	300120270	173
7	1000	3000	300120325	217
8	1000	3500	340120320	250
9	1000	4700	450120320	335
10	1000	5000	350120430	358
11	1200	500	240100160	57
12	1200	1000	230120210	83
13	1200	1200	280120210	100
14	1200	1500	320120230	127
15	1200	2000	340120265	166
16	1200	2500	320120340	200
17	1200	4000	340120480	330
18	1500	500	230120160	48
19	1500	1000	300120215	95
20	1500	1500	340120260	144
21	1500	2000	350120325	192
22	1500	2500	360120390	240
23	1500	3200	350120490	308
24	1600	400	240120160	45
25	1600	800	240120270	87
26	1600	1000	290120265	109
27	1600	1200	340120270	130
28	1600	2400	340120480	263
29	1800	1000	320120290	122
30	1800	2000	320120530	220
31	2000	500	320120230	75
32	2000	1000	320120410	150
33	2000	2000	380120650	300
34	2500	250	230120210	40
35	2500	500	310120290	80
36	2500	1000	340120480	166
37	3000	250	230120260	48
38	3000	500	350120325	96
39	3000	1000	350120600	190
40	3500	250	350120270	60
41	3500	500	350120490	120
42	4000	250	380120350	73
43	4000	500	380120650	150
44	5000	200	350120375	65
45	5000	250	500120320	80
46	5000	500	520230320	164

Note: Other specifications and sizes outside the table are negotiable.

Features of Energy Storage, Pulsed, DC-Link Filter Capacitor

Features of Energy Storage, Pulsed, DC-Link Filter Capacitor

1. High specific energy density, strong storage capacity

2. Low ESR, high ripple current and large peak current shock handling capabilities

3. Low inductance, large dv/dt, good frequency characteristics.

4. Self-healing property

5.Long lifetime(>=100,000h)

6. High vacuum oiling, good heat dissipation, stable and reliable performance of the capacitors

7. Huge capacitance

8. High thermal conductivity
