Single Phase AC Filter Capacitor Round Type

Single Phase Ac Filter Capacitor Round Type's Application:

Widely applied to the power factor capacitors of AC power systems with a nominal voltage of 1000V and below, frequency of 15Hz-60Hz, mainly used to improve the power factor, reduce reactive power loss and improve voltage quality.

Get a Quote

Specification of Single Phase AC Filter Capacitor Round Type

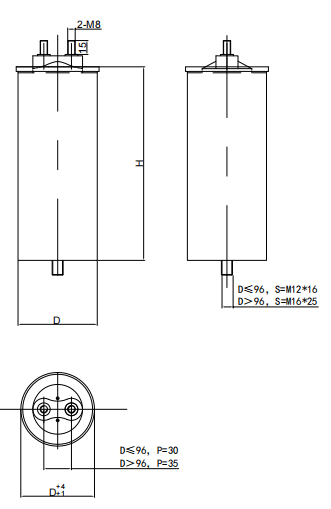

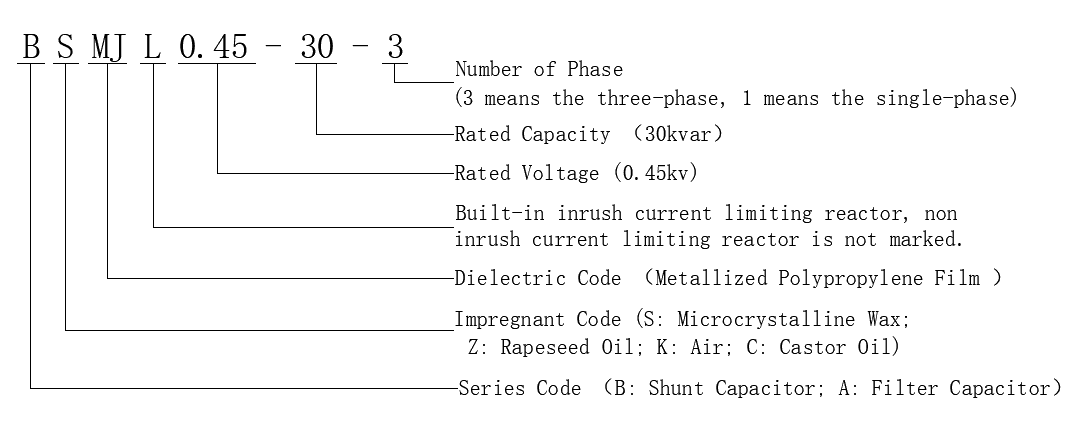

Single Phase AC Filter Capacitor Round Type Model ParaphraseSingle Phase Ac Filter Capacitor Round Type Outline Drawing



Model BSMJ

Rated voltage

Rated capaccity

Size D * H

KV

Kvar

MM

0.4-5-1

0.4

5

76*150

0.4-10-1

0.4

10

96*150

0.4-15-1

0.4

15

96*210

0.4-20-1

0.4

20

106*210

0.4-25-1

0.4

25

106*210

0.45-5-1

0.45

5

76*150

0.45-10-1

0.45

10

86*150

0.45-15-1

0.45

15

86*210

0.45-20-1

0.45

20

96*210

0.45-25-1

0.45

25

106*210

0.45-30-1

0.45

30

116*210

0.525-5-1

0.525

5

76*150

0.525-10-1

0.525

10

86*150

0.525-15-1

0.525

15

86*210

0.525-20-1

0.525

20

96*210

0.525-25-1

0.525

25

106*210

0.525-30-1

0.525

30

116*210

0.525-35-1

0.525

30

126*210



Note: Other specifications and sizes outside the table are negotiable.

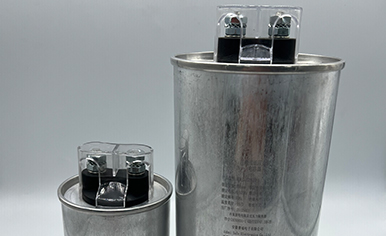

Features of Single Phase AC Filter Capacitor Round Type

Features of Single Phase AC Filter Capacitor Round Type

1. Small size， large current, adapt to higher ambient temperature degree, lower temperature rise, less heat.

2. Excellent self-healing performance, built-in self-discharge resistance and safety explosion-proof device make the product more safe and more reliable.

3. Adopt a dry structure, or use microcrystalline wax as an impregnant agent, running performance is more steady, no oil leakage, and safety and environmental protection.

4. The printed iron shell with special anti-corrosion treatment, and corrosion resistance, is attractive and firm, with no need to spray paint, and more environmentally friendly.
