Name: IGBT Capacitor
Brand: Anhui Safe Electronics Co., Ltd.

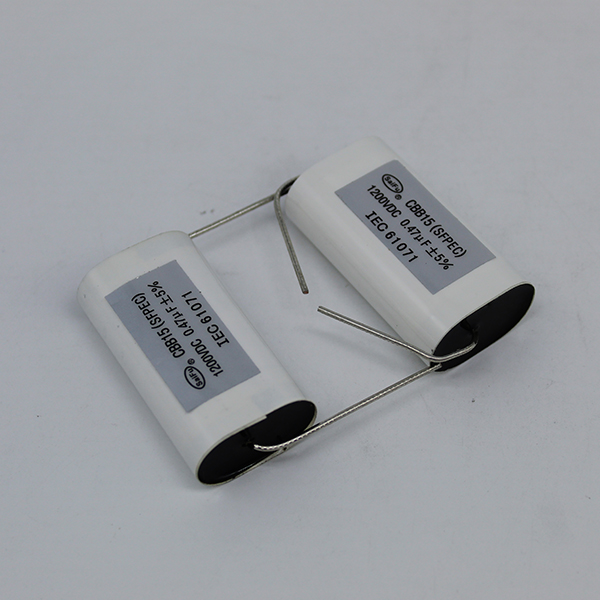

IGBT Capacitor

IGBT Capacitor's Applications:

IGBT absorption capacitor has double-sided metallized film, non-inductive structure, low equivalent series inductance, can withstand high du/dt, can withstand high pulse current, small ESR, and has self-healing properties. Absorption protection is applicable to all IGBT module area peak voltage.

Specification of IGBT Capacitor

IGBT Sunbber Capacitor Outline Drawing

Cn (μF)	Un (V)	Imax (A)	dv/dt (V/μs)	Ls (nH)	U t-t (V)	U t-c (V)	tgδ (20℃,10kHz)	Size (mm)
CBB15(SFPEC)
0.47	1200VDC	7	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	46×18×34
1	1200VDC	15	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	46×34×36
2	1200VDC	25	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	50×46×50
3	1200VDC	35	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	50×46×50
30	1250VDC	30	200	≤10	1800V, 10S	3000VAC,60S	≤100×10^-4	74×46×49
40	1250VDC	40	200	≤10	1800V, 10S	3000VAC,60S	≤100×10^-4	74×46×49
CBB16(SFPEC)
2	500VAC	25	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	ф63×49
3	500VAC	35	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	ф63×49
4	500VAC	50	1200	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	ф63×49
5	500VAC	60	1300	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	ф63×49
6	500VAC	80	1400	≤10	1800V, 10S	3000VAC,60S	≤10×10^-4	ф76×49
10	1400VDC	6	200	≤10	1800V, 10S	3000VAC,60S	≤30×10^-4	ф50×60
20	1400VDC	10	200	≤10	1800V, 10S	3000VAC,60S	≤30×10^-4	ф50×60
50	350VDC	14	200	≤10	600V, 10S	3000VAC,60S	≤30×10^-4	ф50×60
40	800VDC	10	200	≤10	1200V, 10S	3000VAC,60S	≤30×10^-4	ф40×60
60	800VDC	15	200	≤10	1200V, 10S	3000VAC,60S	≤30×10^-4	ф50×60
100	800VDC	28	200	≤10	1200V, 10S	3000VAC,60S	≤30×10^-4	ф62×60
200	800VDC	26	200	≤10	1200V, 10S	3000VAC,60S	≤30×10^-4	ф60×110
